O-Ring Surface Finish and Groove Design for PTFE-Encapsulated O-Rings in Critical Applications

Introduction

O-Ring Surface Finish :PTFE-encapsulated O-rings play a critical role in sealing systems within semiconductor manufacturing, vacuum chambers, and pharmaceutical equipment. These environments demand exceptional chemical resistance, ultra-clean surfaces, and high reliability under aggressive sterilization, thermal cycling, and corrosive exposure. While encapsulated O-rings offer unmatched chemical inertness and cleanliness, their unique construction presents challenges that must be addressed through careful design.

In contrast to conventional elastomeric O-rings, PTFE-encapsulated seals cannot easily conform to surface irregularities. As a result, the surface finish of the mating components, the compression ratio, and the groove geometry become decisive factors in ensuring seal integrity. This paper outlines the optimum surface finish ranges, explains how compression affects sealing performance, and proposes groove configurations for both standard and low clamping force applications. Additionally, we explore design strategies—such as using non-circular cross sections—to improve sealing effectiveness when clamping force is limited.

Understanding PTFE-Encapsulated O-Rings

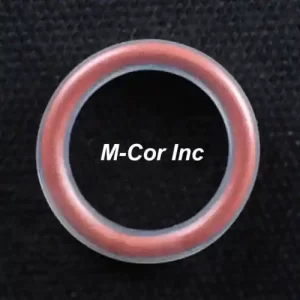

PTFE-encapsulated O-rings consist of a chemically inert fluoropolymer jacket surrounding an elastomeric core. The jacket material—commonly FEP or PFA—provides excellent resistance to aggressive media, while the core (typically silicone or fluoroelastomer) supplies the elasticity needed to maintain sealing force.

Although the PTFE layer offers excellent chemical and thermal resistance, it also introduces stiffness and reduced compressibility. Unlike soft elastomers, PTFE does not readily deform into surface grooves or scratches. Therefore, the success of a PTFE-encapsulated O-ring depends heavily on surface smoothness, appropriate gland design, and sufficient compression to generate contact pressure.

O-Ring Surface Finish: Ra vs RMS

Surface finish refers to the microscopic peaks and valleys present on machined surfaces. Two commonly used roughness metrics are:

• Ra (Roughness Average): the arithmetic average of absolute deviations from the mean surface line.
• RMS (Root Mean Square): the square root of the average of the squares of deviations, giving more weight to larger irregularities.

While the two measures are similar, RMS values are typically 10–15% higher than Ra for the same surface. In most engineering contexts, Ra has become the standard.

When using PTFE-encapsulated O-rings, the key concern is an O-ring surface finish that has rough surface—one with tall peaks or deep valleys—can result in incomplete sealing. The hard PTFE jacket bridges over these imperfections rather than filling them in. Consequently, the rougher the surface, the greater the risk of microleakage, especially in gas and vacuum applications.

Recommended O-Ring Surface Finish

For effective sealing with PTFE-encapsulated O-rings:

• 32 μin Ra (0.8 μm) or smoother is suitable for sealing liquids under moderate pressure.
• 16 μin Ra (0.4 μm) or better is preferred for vacuum, gases, or cleanroom environments.
• 8–12 μin Ra may be required for ultra-high vacuum or sub-atmospheric semiconductor tools.

In pharmaceutical and semiconductor applications, components are often electropolished to meet or exceed these finish requirements. Aluminum sealing surfaces, which are softer, should be anodized or otherwise protected to maintain the required finish over time.

Compression and Its Impact on Sealing

Compression is the percentage reduction of the O-ring cross section when installed. For example, a 0.070″ O-ring compressed by 0.014″ is under 20% squeeze.

Compression ensures that the O-ring deforms against the sealing surfaces to close potential leak paths. However, the stiffness of the PTFE jacket means that more force is required to achieve an effective seal.

Typical compression levels:

• 10% compression: Minimum effective squeeze, requires extremely smooth surfaces.
• 20% compression: Standard design squeeze, suitable for most static seals.
• 30% compression: High squeeze, increases sealing reliability but risks over-stressing the PTFE.

At lower compressions, the O-ring may not generate enough force to conform to the surface texture. In such cases, surface finish becomes even more critical. A rough surface at 10% squeeze is likely to leak, whereas the same surface might seal adequately at 25–30% compression.

On the other hand, over-compression can damage the PTFE jacket, leading to premature failure. The ideal balance is to select the lowest compression that ensures reliable sealing—paired with a surface finish that supports that level of squeeze.

Groove Geometry: Standard vs Low Clamping Force

The gland, or groove, that houses the O-ring determines the amount of squeeze and the space for the seal to deform. Groove depth controls vertical compression, while groove width allows lateral expansion.

For standard compression designs with normal clamping force, typical groove depths are 75–80% of the O-ring cross section. This provides 20–25% compression, ensuring sufficient deformation of the PTFE jacket for a tight seal. Groove width is usually 100–120% of the cross section to allow room for expansion.

However, in applications where clamping force is limited—such as lightweight aluminum assemblies, quick-release vacuum flanges, or glass-lined equipment—this level of compression may not be feasible. In these cases, groove design must adapt.

Groove Design for Low Clamping Force

When force is limited, the seal must deform more easily to generate contact pressure. Several strategies can be used:

1. Use a Softer or Hollow Core: Encapsulated O-rings are available with hollow silicone cores that reduce the amount of force required to compress the seal. This is especially useful in vacuum systems where high torque or heavy clamps are not practical.
2. Reduce Compression: Groove depth can be increased to reduce squeeze to 10–15%. This requires extremely smooth mating surfaces to maintain sealing reliability.
3. Widen the Groove: Increasing groove width slightly allows the O-ring to expand laterally with less resistance, helping it seat under lower force.
4. Incorporate Retention Features: Dovetail grooves or radial locks can help retain the O-ring in position and prevent roll-out during assembly.
5. Select the Right Cross-Section Shape: Non-standard cross sections can increase contact area and improve sealing performance under low force conditions.

Alternative Cross-Section Profiles for Semiconductor Sealing

In semiconductor applications, low clamp force is often necessary due to tool design constraints or the need for rapid maintenance. Standard round O-rings may not provide enough surface contact to seal at low force, particularly with hard encapsulated jackets.

By using alternative shapes, such as:

• Square or rectangular cross sections
• Flat side O-rings (D-rings)

the sealing surface area is increased, distributing contact force over a broader region and improving seal reliability. These shapes allow for greater surface contact at the same compression level, making them particularly well-suited for vacuum lid seals, gate valves, and chamber doors.

Additionally, flat-profile gaskets made of PTFE encapsulated seals can offer enhanced low-force sealing. These components can be designed to compress with as little as 10–15 psi of clamp pressure, maintaining high vacuum integrity.

When designing for these profiles, groove geometry must be adapted accordingly. Flat cross sections may require shallow, wide grooves; quad rings need rounded lobes in the gland corners to ensure even compression5. Care must be taken to maintain sealing line contact and avoid excessive squeeze in any one region.i

Sealing Against Fragile Ceramic Surfaces with Teflon Encapsulated O-Rings

In high-purity equipment—especially in semiconductor, analytical, or pharmaceutical applications—one of the sealing surfaces may be made of a brittle ceramic such as alumina, zirconia, or sapphire. These materials offer outstanding chemical and thermal resistance, but their mechanical fragility requires special considerations when using PTFE-encapsulated O-rings.

Because PTFE jackets are relatively hard and require some compression to achieve sealing, they can impose localized point loads on ceramic substrates. If improperly managed, this can lead to micro-cracking, abrasion, or catastrophic failure of the sealing face. To minimize risk and ensure a secure seal, the following approaches are recommended:

1. Limit Compression to Low Levels When sealing against ceramic, it is crucial to limit compression of the O-ring to 10–15% of its cross section. Excessive squeeze can apply stress beyond the fracture toughness of the ceramic. For static sealing, especially with smooth surfaces, this lower compression range can still produce a tight seal when combined with proper surface finish and groove design.
2. Use Hollow-Core Encapsulated O-Rings A key strategy to reduce required clamping force is to specify hollow-core PTFE-encapsulated O-rings, typically built around a silicone hollow-tube core. These compress more easily than solid-core variants, enabling adequate sealing pressure with minimal stress on the fragile substrate.
3. Optimize Groove Geometry for Pressure Distribution Groove designs should be configured to distribute sealing pressure evenly across the ceramic surface:

• Choose wider, flatter grooves that allow the O-ring to seat with more surface contact.
• Avoid sharp groove corners; chamfer or radius all edges to prevent stress concentration in the ceramic.
• Consider D-shaped or square cross-section encapsulated seals to increase contact area and reduce pressure per unit area.

4. Select the Softest Effective Jacket Material When sealing against ceramics, FEP jackets may be preferred over PFA due to their slightly lower stiffness and greater flexibility. Although both offer similar chemical resistance, FEP’s slightly softer behavior makes it better suited for delicate surfaces.
5. Enhance Surface Finish of the Ceramic Face Ceramic sealing surfaces should be polished to a mirror-like finish (≤10 μin Ra) to allow the PTFE jacket to seal with minimal deformation. This finish reduces the need for high contact pressure and limits mechanical abrasion.
6. Use Controlled Clamping Techniques To avoid over-stressing the ceramic, employ torque-limited fasteners or spring clamps to ensure uniform, moderate loading. Avoid bolting directly to ceramic; instead, let the ceramic “floats” within a constrained frame or seal carrier that absorbs mechanical load while maintaining alignment.
7. Conduct Room-Temperature Assembly and Verification Ceramics become more brittle at low temperatures. Assemble and test the sealing system at room temperature to ensure even seating and to detect any misalignment or stress before thermal cycling or pressurization.

Installation Considerations

Due to the stiffness and fragility of PTFE jackets, encapsulated O-rings must be installed carefully. The following practices help prevent damage:

• Deburr all groove edges and apply chamfers to prevent cutting the jacket.
• Use lubricant (compatible with PTFE) to reduce friction during insertion.
• Pre-warm the O-ring slightly to improve flexibility and reduce cracking risk.
• Avoid stretching the seal excessively, particularly in cold conditions.

Poor installation can result in nicks or stress fractures in the encapsulation, which become leak points during operation. In semiconductor or pharmaceutical environments, such defects may not be immediately visible but can cause contamination or process failures.

Conclusion

Sealing performance in high-purity applications depends not just on material selection, but on the entire system of compression, surface finish, and groove geometry. PTFE-encapsulated O-rings demand a more rigorous approach than traditional elastomer seals due to their stiffness and limited deformability.

Key takeaways include:

• Use surface finishes of 16–32 μin Ra, with smoother finishes preferred for vacuum or gas sealing.
• Design for 20–30% compression when possible, but accommodate low clamping force with alternate strategies.
• Consider non-round cross sections or hollow-core seals to enhance performance under limited load.
• Adjust groove geometry to optimize compression and support the seal effectively.
• Pay attention to installation technique, especially for delicate encapsulated jackets.

By combining these principles, designers can ensure that encapsulated O-rings perform reliably even under the tightest constraints—supporting the critical processes of semiconductor, vacuum, and pharmaceutical industries.
